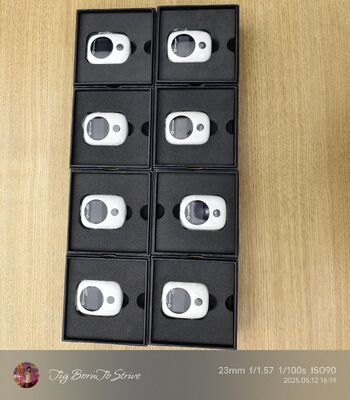

Nuclear Scintillator Radiation Detector Relative Inherent Error ≤±20% Range 0.01μSv/ H-100msv /h
| Tempat asal | Cina |
|---|---|
| Nama merek | JOVI |
| Nomor model | JVVMED-015 |
| Dokumen | JVVMEG-NRM.pdf |
| Kuantitas min Order | 1 buah |
| Harga | $267~$312/pc |
| Kemasan rincian | kotak kayu |
| Waktu pengiriman | Dalam waktu 45 hari kerja |
| Syarat-syarat pembayaran | T/T di Muka |
| Menyediakan kemampuan | 5790pcs/tahun |
Detail produk
| Jaminan | 1 Tahun | Menampilkan | LCD digital dengan lampu latar |
|---|---|---|---|
| Metode alarm | Alarm Suara dan Visual | Rentang energi | 30kev ~ 1,5mev ≤ ± 30% (untuk 137cs) |
| Resolusi Energi | ≤9% (untuk sumber Cs-137) | Model | FS300 |
| Efisiensi deteksi | α ≥ 30% (²³⁹Pu); β ≥ 45% (⁹⁰Sr-⁹⁰Y) | Area Deteksi Tangan | 200×120 Cm²×4 |
| Tipe Tampilan | LCD digital dengan lampu latar | Suhu pengoperasian | -20°C hingga 50°C |
| Sistem kendali jarak jauh | Ya | Daya tahan baterai | Hingga 20 jam |
| Tipe Sinar | α,β,γ,sinar X | Catu daya | Baterai lithium-ion yang dapat diisi ulang |
| Kesalahan bawaan relatif | ≤ ± 10 % (137 cs 1 msv/jam) | Koefisien Cal | Kisaran 0,01-9999 |
| Resolusi Sudut | ≤2,5° | Berat | 250 gram |
| Tipe Sinar | α + β / α / β | Latar belakang instrumen | α ≤ 0,1 cps; β ≤ 15 cps |
| Bahan Detektor | Si-PM | Sumber Daya | Baterai |
| Tingkat perlindungan | IP65 | Barang yang dapat dideteksi | X, γ |
Deskripsi Produk
Nuclear Medicine Measuring Radiation Dosimeter Detector For Lab
Product Overview
The Nuclear Radiation Detector is a highly advanced and reliable device designed to accurately detect and monitor various types of ionizing radiation. Equipped with a Geiger Muller Tube detector and ZnS Coated Plastic Scintillator Detector, this instrument excels in identifying and measuring radiation levels including X-rays, gamma (γ) rays, and hard beta (β) rays.
Key capabilities include continuous monitoring with real-time data and immediate alerts, extensive 200*120 cm² *4 hand detection area for comprehensive surface scanning, and flexible fixed or mobile installation options with remote control system operation.
Key Features
- Product Name: Nuclear Radiation Detector
- Energy Range: 30kev ~ 1.5MeV ≤± 30% (for 137Cs)
- Energy Resolution: ≤9% (for Cs-137 Source)
- Detection Efficiency: α ≥ 30% (²³⁹Pu); β ≥ 45% (⁹⁰Sr-⁹⁰Y)
- Size: 15.3*108mm
- Warranty: 1 Year
- Continuously adjustable within measuring range for precise measurements
- Designed to monitor environmentally radioactive contamination
- Supports Alpha and beta ray data acquisition for comprehensive detection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS300 |
| Alarm Method | Audible And Visual Alarm |
| Energy Resolution | ≤9% (for Cs-137 Source) |
| Remote Control System | Yes |
| Detection Ray | X, γ and Hard β Ray |
| Installation Type | Fixed And Mobile |
| Energy Range | 30 keV ~ 1.5 MeV ≤± 30% (for 137Cs) |
| Detection Efficiency | α ≥ 30% (²³⁹Pu); β ≥ 45% (⁹⁰Sr-⁹⁰Y) |
| Hand Detection Area | 200*120 cm² *4 |
| Working Temperature | -10 ºC ~ +45 ºC |
Applications
The JOVI JVVMED-015 Nuclear Radiation Detector is designed for precise monitoring and detection of nuclear radiation in various environments. Ideal for nuclear power plants, research laboratories, border security, customs inspection, and emergency response scenarios.
Features include large touch screen interface, multiple measurement units (cps, cpm, Bq, Bq/cm²), and flexible installation options for both permanent safety stations and portable field inspections.
Customization & Support
JOVI offers comprehensive customization services for the Nuclear Radiation Detector model JVVMED-015. Customization options include continuously adjustable settings within the measuring range to suit various detection environments.
Each unit is packaged in wooden cases with minimum order quantity of 1 piece, delivery within 45 working days, and T/T payment terms. Comprehensive technical support, training services, regular maintenance, and replacement parts are available to ensure optimal performance and longevity.
