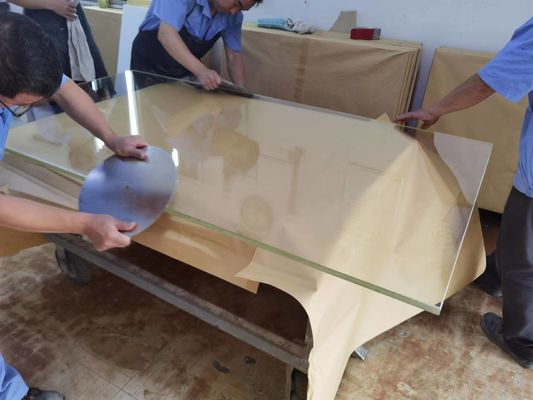

Optical Distortion less than 3 Arcminutes Lead Glasses with 25mm Thickness and 4mmPb Lead Equivalent for Radiation Shielding

Nuclear medicine departments present unique radiation shielding challenges. Unlike diagnostic X‑ray or CT rooms, where photon energies are typically below 150 kVp, nuclear medicine involves gamma emitters such as ⁹⁹ᵐTc (140 keV), ¹³¹I (364 keV), and for PET‑CT, ⁵¹¹ keV annihilation photons from ¹⁸F‑FDG. Jovvi lead glass is specifically engineered to provide both effective radiation attenuation and superior optical clarity in these demanding environments.

Jovvi lead glass for nuclear medicine is manufactured with lead oxide content ranging from 55% to 72% by weight, depending on the required lead equivalence. Standard nuclear medicine panels offer 2.5 mm to 5.0 mm Pb equivalent, with physical thicknesses from 14 mm to 28 mm.

Key quality features include:

• High light transmission – 78% to 86% visible transmittance despite high lead content, ensuring technologists can clearly view patients and monitors.

• Cerium oxide stabilization – Prevents radiation‑induced browning (discoloration) under prolonged gamma exposure. Jovvi nuclear grade glass maintains ΔE < 3.0 after 10⁶ mGy cumulative dose.

• Uniform lead distribution – 100% X‑ray inspection ensures no local weak spots or lead striations.

• Optical flatness – Distortion below 3 arcminutes over 300 mm, critical for viewing fusion images in PET‑CT.

All panels comply with IEC 61331‑2:2014 and ASTM F1198-18 for medical radiation shielding glazing.

⁹⁹ᵐTc (140 keV) is the most common isotope. Jovvi recommends 2.5–3.0 mm Pb equivalent monolithic lead glass. Typical window size: 1200×800 mm. The glass alone provides sufficient attenuation when the surrounding wall matches the same lead equivalence.

⁵¹¹ keV photons have a half‑value layer in lead of approximately 4 mm. A single 5 mm Pb glass panel (physical 28 mm) weighs over 110 kg/m² and still transmits ~50% of 511 keV photons. Therefore, Jovvi recommends a composite window:

• Front layer: 2.5 mm Pb lead glass

• Middle layer: 10 mm lead acrylic (~2.5 mm Pb eq. at 140 keV, ~1.5 mm at 511 keV)

• Rear layer: 2.5 mm Pb lead glass
  Total 511 keV transmission: <15% . Weight: ~70 kg/m² – 40% lighter than monolithic.

Viewing ports into fume hoods require 2.5 mm Pb glass. Small panels (400×300 mm) allow pharmacists to read syringe graduations while shielded from ⁹⁹ᵐTc or ¹⁸F‑FDG during dose preparation.

For therapeutic doses, Jovvi recommends 3.5–4.0 mm Pb monolithic glass. Nursing staff can observe patients for distress without entering the high‑dose area.

Multiple panels along a corridor require matched tint batches. Jovvi provides batch‑matched glass so that all windows appear identical – essential for visual consistency in large nuclear medicine departments.

Jovvi operates under ISO 13485:2016 (medical devices) and ISO 9001:2015. Every panel intended for nuclear medicine receives energy‑specific testing:

• 140 keV attenuation measurement (⁹⁹ᵐTc or filtered X‑ray tube) – required for all SPECT and hot lab applications.

• Optional 511 keV measurement (²²Na source) – for PET‑CT projects.

• Uniformity grid scan – 2D attenuation map ensuring no local weak spots.

• Radiation stability certificate – proves CeO₂ content and browning resistance (500‑hour gamma exposure test).

Each panel is laser‑etched with a serial number linking to batch records. The delivery package includes:

• Factory lead equivalence certificate (with uncertainty ±0.05 mm Pb)

• Visible light transmittance report

• Installation manual (torque specs, gasket requirements, lead tape sealing)
