Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments

  • Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments
Tempat asal CINA
Nama merek JOVI
Nomor model 1-cf-100
Kuantitas min Order 1 set
Harga USD50000-62000/PC
Kemasan rincian dalam Kasus Kayu
Waktu pengiriman 30 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran L/c, t/t
Menyediakan kemampuan 10 buah per bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Menyoroti

modular robotic assembly unit

,

hot cell robotic unit

,

high-radiation robotic assembly
Tinggalkan pesan
Deskripsi Produk

Product Description:



The hot cell consists of three structural sections. The control area is located in the upper part of the hot cell, equipped with an independent ventilation system, hot cell control unit, radioactive gas shut-off valve, and internal radiation dose monitoring and interlock system.
The working area is situated in the middle section, where operators access by opening the front shielding door. The spacious internal design accommodates the installation of all synthesizers available on the market.
The auxiliary area is located in the lower section, providing supporting functions for the hot cell.
High-standard lead shielding and bioclean safety requirements not only comply with ICRP radiation safety standards but also ensure a GMP-compliant clean pharmaceutical environment for the synthesis of positron-emitting radiopharmaceuticals for PET.

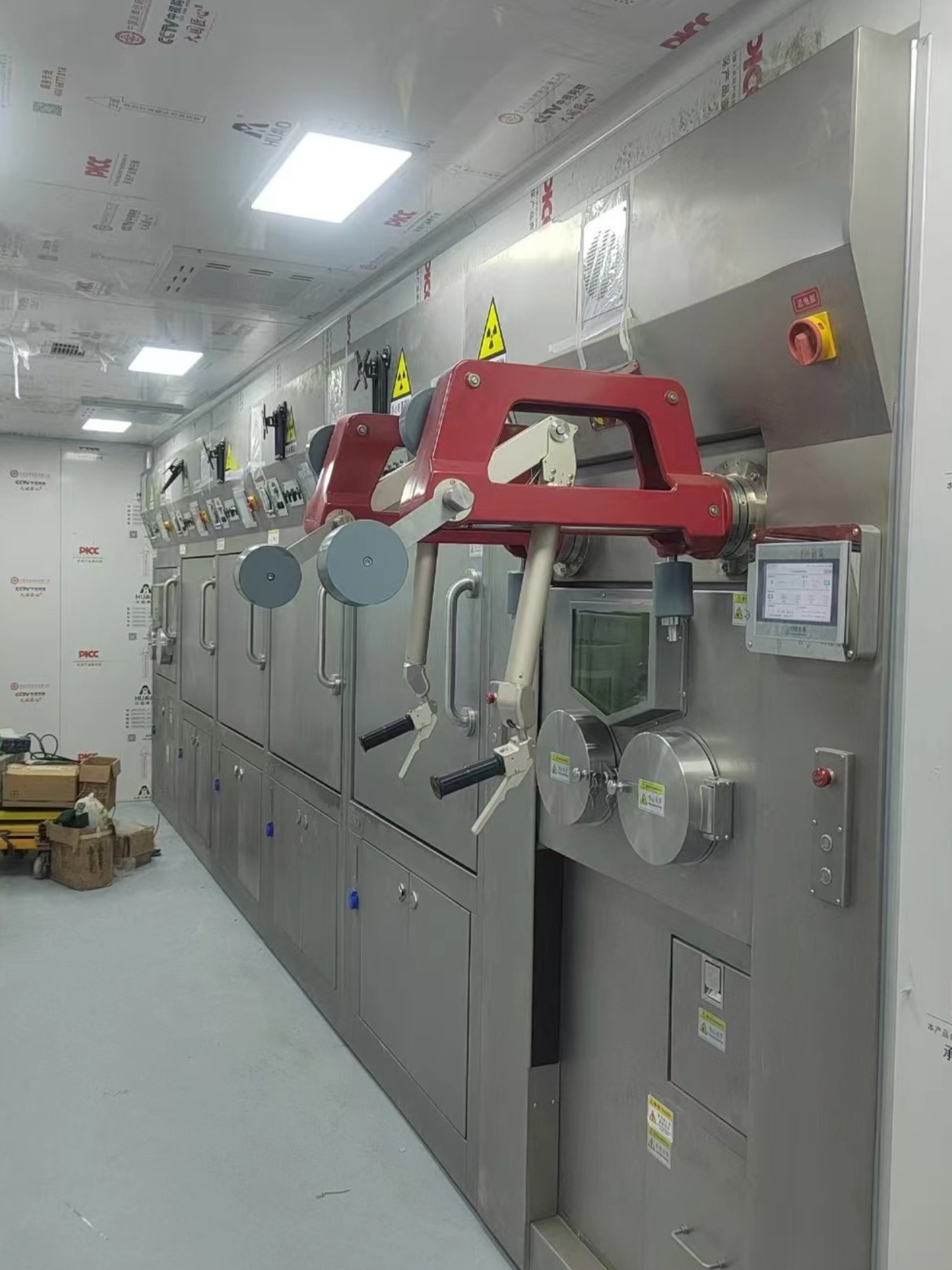

 Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments 0







Product Detail:



cGMP-Compliant Bioclean Work Area One independent synthesis lead enclosure constructed from seamless welded stainless steel
Cleanliness Class: Class C
Negative Pressure: 50 Pa – 100 Pa
Airflow Volume: 600 m³/h
Sealing: Isolated clean stainless steel inner chamber
Air Supply: 99.95% HEPA filtration
Exhaust: HEPA + activated carbon filtration
ICRP-Compliant Radiation Shielding
Front Shielding: 100 mm Pb
Side Shielding: 100 mm Pb
Surface Radiation Dose: < 10 µSv/h
Radiation Dose at 1 m Distance: < 0.5 µSv/h
Ergonomically Designed Control Panel
Hot Cell
Control: Centralized
integrated touchscreen HMI
(Human-Machine Interface)

Dimensions:
Internal Dimensions: 850 mm (W) × 590 mm (D) × 680 mm (H)
External Dimensions: 1125 mm (W) × 1078 mm (D) × 2400 mm (H)

RFQ:

1. We can offer customized design size and lead equivalent hot cell for our customer.
2. After confirming the order, we will offer detail drawing of the hot cell to our customer and then arrange production
